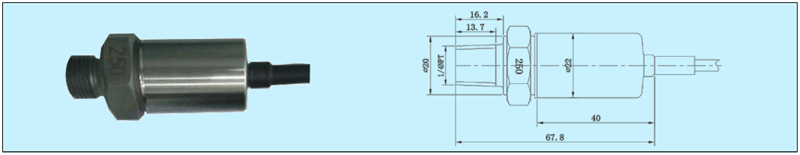

RSA-TPW Pressure Transmitter

Applications & Features
For pressure measurement of compatible fluid and gas

Specifications
Sensor: glass micro fused silicon strain sensor Power: 10-30VDC
Output: 4-20mA (2 wires), load 0-500Ω@10-30VDC Range: see models
Temp. limit: Work -20-85°C;Medium -40-125°C; Compensation 0-55°C
Accuracy: ±0.5%FS (BFSL)
Stability: ≤0.5%FS/Year
Pressure limits: overload 200%FS, burst 500%FS Response time: ≤50ms
Medium compatibility: 17-4PH stainless steel Housing: 304 SS; Protection: IP65
Approval: CE

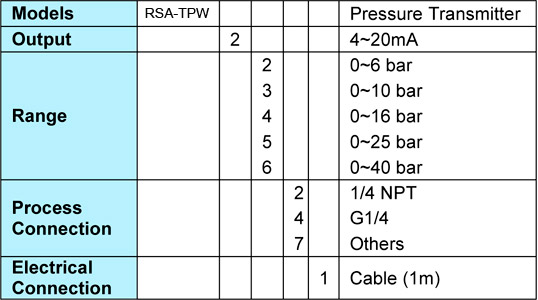

Models



PDT Differential Pressure Transmitter

Applications & Features
For diff. pressure measurement of compatible fluid and gas
Specifications
Sensor: glass micro fused silicon strain sensor
Power: Current: 18.5-35VDC (RL=500Ω), 8.5-35VDC (RL=0Ω),
Voltage output: 16-35VDC, 16-28VAC
Output: 4-20mA (2 wires), 0-10VDC(3 wires) or RS485 Output Load: ≤500Ω (current), ≥2kΩ (0-10VDC)
Accuracy: typical ±0.5%FS (BFSL), see range specifications Range: see range specifications
Display: LCD, with unit indication(kPa/mbar/in WC/bar/MPa)* Temp. limit: work -20-70°C; medium -20-85°C; compensation 0-55°C Pressure Limit: see range specifications
Response time: ≤500ms
Medium compatibility: 17-4PH stainless steel
Housing: sensor 17-4PH stainless steel; sensor casing 304 stainless steel;enclosure ABS+PC(flame retardant)
Protection: IP65
Weight: 0.6kg (without mounting bracket)
Approval: CE
Mount Bracket: PDT-A, for surface
mount, should be ordered separately
*The factory set engineering unit is bar.
Customer can switch to others with the
UNIT button on the PCB.

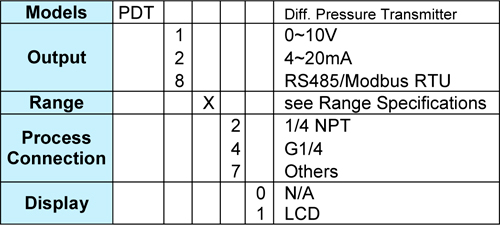

Models

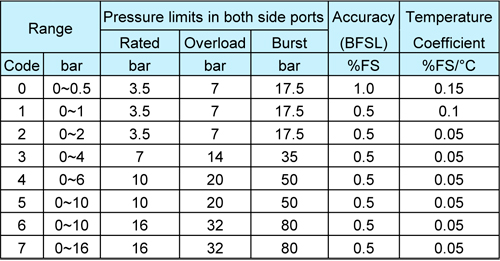

Range Specifications
